Two piece cast steel fixed ball valve-Zhejiang Zhedong Valve Co., Ltd.-Official website

Product details

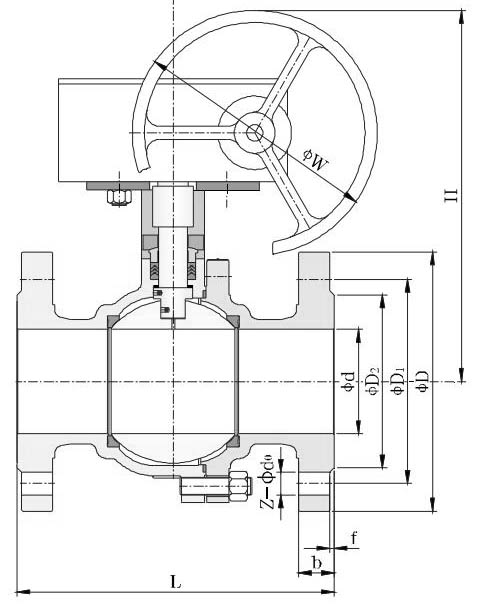

Main shape and connection dimension

Pressure level	Bore		Size（mm）													Weight (kg)
	DN	NPS	L		d	D	D1	D2	b	f	Z-φd0	W		H		Weight (kg)
	DN	NPS	RF	RJ	d	D	D1	D2	b	f	Z-φd0	Manual	Worm gear	Manual	Worm gear	Manual	Worm gear
Class 150	15	½	108	119	14	89	60.5	35	11 .5	1 .6	4 -15	140	-	85	-	3	-
	20	¾	117	130	19	98	70	43	11 .5	1 .6	4 -15	140	-	90	-	4	-
	25	1	127	140	25	108	79.5	51	11 .5	1 .6	4 -15	150	-	99	-	5	-
	32	1¼	140	153	32	117	89	64	13	1 .6	4 -15	180	-	105	-	7	-
	40	1½	165	178	38	127	98.5	73	14 .5	1 .6	4 -15	200	-	126	-	8	-
	50	2	178	191	51	152	120.5	92	16	1 .6	4 -19	250	-	140	-	12	-
	65	2½	190	203	64	178	139.5	105	17 .5	1 .6	4 -19	300	-	165	-	18	-
	80	3	203	216	76	190	152.5	127	19 .5	1 .6	4 -19	350	-	178	-	24	-
	100	4	229	242	102	229	190.5	157	24	1 .6	8 -19	500	305	230	380	38	53
	125	5	356	369	127	254	216	186	24	1 .6	8 -22	800	305	280	405	60	79
	150	6	394	407	152	279	241.5	216	25 .5	1 .6	8 -22	800	305	310	460	82	102
	200	8	457	470	203	343	298.5	270	29	1 .6	8 -22	1000	305	350	550	145	185
	250	10	533	546	254	406	362	324	31	1 .6	12 -25	-	400	-	706	-	280
Class 300	15	½	140	151	14	95	66 .5	35	14 .5	1 .6	4 -15	140	-	85	-	3	-
	20	¾	152	165	19	117	82 .5	43	16	1 .6	4 -19	140	-	90	-	5	-
	25	1	165	178	25	124	89	51	17 .5	1 .6	4 -19	150	-	99	-	6	-
	32	1¼	178	191	32	133	98 .5	64	19 .5	1 .6	4 -19	180	-	105	-	8	-
	40	1½	190	203	38	156	114 .5	73	21	1 .6	4 -22	200	-	126	-	11	-
	50	2	216	232	51	165	127	92	22 .5	1 .6	8 -19	250	-	142	-	16	-
	65	2½	241	257	64	190	149	105	25 .5	1 .6	8 -22	300	-	165	-	24	-
	80	3	283	299	76	210	168 .5	127	29	1 .6	8 -22	350	-	178	3 30	34	52
	100	4	305	321	102	254	200	157	32	1 .6	8 -22	500	305	230	3 80	56	76
	125	5	381	397	127	279	235	186	35	1 .6	8 -22	800	305	280	4 20	86	124
	150	6	403	419	152	318	270	216	37	1 .6	12 -22	800	305	310	4 80	125	163
	200	8	502	518	203	381	330	270	41 .5	1 .6	12 -25	1000	305	350	5 60	222	267
Class 600	15	½	165	164	14	95	66 .5	35	14 .5	6 .4	4 -15	140	-	79	-	5	-
	20	¾	190	190	19	118	82 .5	43	16	6 .4	4 -19	140	-	83	-	7	-
	25	1	216	216	25	124	89	51	17 .5	6 .4	4 -19	200	-	114	-	9	-
	32	1¼	229	229	32	133	98 .5	64	21	6 .4	4 -19	200	-	120	-	13	-
	40	1½	241	241	38	156	114 .5	73	22 .5	6 .4	4 -22	250	-	125	-	17	-
	50	2	292	295	51	165	127	92	25 .5	6 .4	8 -19	300	-	156	-	25	-
	65	2½	330	333	64	190	149	105	29	6 .4	8 -22	350	-	172	-	42	-
	80	3	356	359	76	210	168	127	32	6 .4	8 -22	500	305	220	370	56	76
	100	4	432	435	102	273	216	157	38 .5	6 .4	8 -25	650	305	250	400	85	1 23
Class 900	15	½	216	216	14	121	82 .5	35	22.5	6 .4	4-23	150	-	98	-	9	-
	20	¾	229	229	20	130	88 .9	43	25.5	6 .4	4-23	150	-	105	-	13	-
	25	1	254	254	25	149	101 .6	51	29	6 .4	4-26	200	-	110	-	16	-
	32	1¼	279	279	32	159	111 .1	64	29	6 .4	4-26	250	-	120	-	24	-
	40	1½	305	305	38	178	123 .8	73	32	6 .4	4-29	250	-	125	-	31	-
	50	2	368	371	50	216	1 65 .1	92	38.5	6 .4	8-26	350	-	160	-	45	-
Class1500	15	½	216	216	14	121	82 .5	35	22.5	6 .4	4-23	182	-	98	-	10	-
	20	¾	229	229	20	130	88 .9	43	25.5	6 .4	4-23	200	-	105	-	14	-
	25	1	254	254	25	149	101 .6	51	29	6 .4	4-26	250	-	110	-	17	-
	32	1¼	279	279	32	159	111 .1	64	29	6 .4	4-26	300	-	120	-	25	-
	40	1½	305	305	38	178	123 .8	73	32	6 .4	4-29	350	-	130	-	33	-
	50	2	368	371	50	216	165 .1	92	38 .5	6 .4	8-26	500	-	160	-	48	-
