Structural features
All-welded ball valve is a one-body all-welded ball valve without external leakage and other phenomena. Since the seat is composed of PTFE sealing ring and spring, it has strong adaptability to pressure and temperature changes and will not produce any leakage within the service range.The machining process of the sphere is tracked and detected by the advanced computer detector, so the machining precision of the sphere is high.As the valve body material is the same as the pipe material, there will be no uneven stress and deformation due to earthquake and vehicle passing through the ground, so the pipe is anti-aging.The sealing ring body is made of PTFE material with 20%C(carbon) to ensure complete leakage (0%).
Executive Standards
Design specification: API 6D, ASMEB 16.34
Pressure - temperature classes: ASME B16.34, API608
Structure length: ASME B16.10, GB12221
Butt welding form: ASME B16.25, ASME B31.4/31.8
Inspection and test: API 598, API 6D, GB13927
Fire resistance test: API 607, API 6FA
Performance parameter
Type : Q361F
Connection: welding, butt welding
Pressure class: PN 2.5MPa
Product specification: DN125~600mm
Material: WCB,A105,F11,F22,F304, F316, CF8, CF8M, WCC or according to customer requirements
Applicable temperature: -29℃≤ T ≤200 ℃(temperature bearing is different from the material of valve body and sealing surface)
Applicable medium: water, oil, natural gas, acid base medium, etc
Driving mode: worm wheel drive

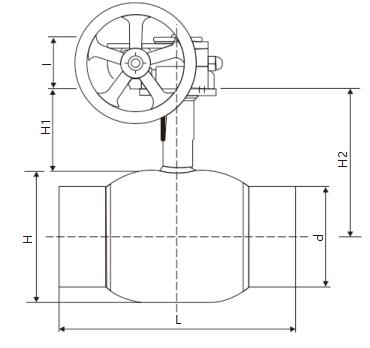

Product size
|
DN(mm)
|
Bore
|
H
|
d
|
t
|
L
|
H1
|
H2
|
I
|
ISO
|
W T(kg)
|
|
A/B
|
|
125
|
100
|
193
|
139.7/133
|
5
|
325
|
42
|
221
|
40
|
F07
|
22
|
|
150
|
125
|
219
|
168.3/159
|
6
|
350
|
83
|
245
|
50
|
F10
|
32
|
|
200
|
150
|
273
|
219.1/219
|
7
|
400
|
84
|
289
|
60
|
F12
|
44
|
|
250
|
200
|
351
|
273/273
|
8
|
559
|
90
|
306
|
84
|
F14
|
102
|
|
300
|
250
|
425
|
323.9/325
|
12
|
635
|
87
|
336
|
105
|
F16
|
150
|
|
350
|
300
|
508
|
355.6/377
|
14
|
762
|
102
|
395
|
110
|
F25
|
267
|
|
400
|
350
|
610
|
406.4/426
|
14
|
838
|
95
|
445
|
120
|
F25
|
460
|
|
450
|
400
|
610
|
457/480
|
16
|
914
|
95
|
460
|
120
|
F25
|
550
|
|
500
|
400
|
680
|
508/530
|
18
|
991
|
95
|
522
|
150
|
F30
|
720
|
|
600
|
500
|
813
|
610/630
|
22
|
1143
|
105
|
610
|
170
|
F30
|
1600
|
