Ferrule sealing plug valve-Zhejiang Zhedong Valve Co., Ltd.-Official website

Product details

Structural features

1. The product has reasonable structure, reliable sealing, excellent performance and beautiful appearance.
2, its sealing is through the cover around the card to achieve.Unique 360° metal lip protection fixed clamp sleeve.
3, the valve has no cavity to the media accumulation.
4, the metal lip in the cock rotation to provide self-cleaning role.Suitable for viscous and easy scaling conditions.
5, two-way flow, more convenient to use and install.
6. The material and flange size of the parts can be reasonably selected according to the actual working conditions or user requirements.Meet various engineering needs.

Technical specifications

Structural formation

Driving form

Handle, worm gear drive, pneumatic, electric

Design criteria

API599、API6D

Structural length

ASMEB16.10

Connecting flange

ASMEB16.5

Test and inspection

API598.API 6D

Product performance specification

Nominal pressure	Shell test pressure	Sealing test pressure	Applicable temperature（℃）	Applicable media
150	3	2.2	≤180℃	Water, steam, oil, etc
300	7.5	2.5
600	15	11
900	22.5	16.5

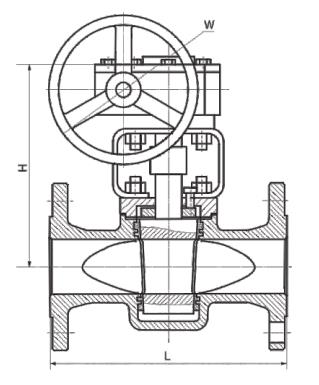

Product size

Model		ZDAX43-150LB
Pressure		150LB
Caliber	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	1¼	1½	2	2½	3	4	5	6	8	10	12	14
L		108	117	127	140	165	178	190	203	229	254	267	292	330	356	381
H		110	115	115	135	140	150	165	180	380	460	520	580	620	680	760
W		175	175	175	220	280	305	350	405	300	300	320	320	350	380	450
(Kg) Weight		8.5	9.5	10.5	12	14	18	22	26	40	60	70	130	219	381	570

Model		ZDAX43-300LB
Pressure		300LB
Caliber	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	1¼	1½	2	2½	3	4	5	6	8	10	12	14
L		140	152	165	178	190	216	241	283	305	381	403	419	457	502	762
H		110	115	115	135	140	150	165	180	380	460	520	580	620	680	760
W		175	175	175	220	280	305	350	405	300	300	320	320	350	380	450
(Kg) Weight		9.5	10.5	12	14	16	20	24	29	53	75	85	185	230	390	550

Model		ZDAX43-600LB
Pressure		600LB
Caliber	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	in	1/2	3/4	1	1¼	1½	2	2½	3	A	5	6	8	10	12	14
L		165	190	216	229	241	292	330	356	432	508	559	660	787	838	889
H		110	115	115	135	140	150	165	180	380	460	520	580	620	680	760
W		175	175	175	220	280	305	350	405	300	300	320	320	350	380	450
(Kg) Weight		11	13	17	20	23	27	31	36	72	98	141	245	330	515	710

Model		ZDAX43-900LB
Pressure		900LB
Caliber	mm	15	20	25	32	40	50	65	80	100	125	150	200	250	300	350
Size	m	1/2	3/4	1	1¼	1½	2	2½	3	4	5	6	8	10	12	14
L		229	229	254	279	305	368	419	381	457	559	610	737	838	965	1029
H		110	115	115	135	140	150	165	180	380	460	520	580	620	680	760
W		175	175	175	220	280	305	350	405	300	300	320	320	350	380	450
Weight		13	16	21	24	28	32	40	47	91	117	165	285	420	610	860
