Lug type high performance butterfly valve

Product overview

Lug type high performance butterfly valve is a kind of high performance butterfly valve designed and manufactured according to the current American standard API609.The valve adopts three - dimensional eccentric oblique conical seat sealing pair, butterfly plate sealing adopts new metal plate embedded in the butterfly plate and the valve seat anastomosis.Butterfly plate rotary pressure sealing, so the sealing surface friction resistance is small, the more closed the more tight function, so that the sealing performance is reliable, open to ensure that the seal completely out of contact, to ensure that the sealing surface is not damaged.
The main structural features of the 815W, 830W and 860W series butterfly valves are sandwiched and flanged with triple eccentricity, while the main structural features of the 815L and 830L series butterfly valves are single flange with threaded holes with lugs around the body.

Product details

Structural features

1. It has the advantages of simple structure, small volume, light weight, low cost and wide application range;
2. The structure of the butterfly valve eliminates the defect that other types of butterfly valves can not be sealed due to over opening, and can be used normally at high temperature, which overcomes the defect of easy leakage due to thermal expansion when using at high temperature;
3. According to the requirements of service medium, the butterfly valve selects different sealing surface materials to ensure that the sealing surface is wear-resistant, erosion resistant and has a long service life.

Executive Standards

Design and Manufacture: API609
Structure length: ASME B16.10
Flange connection: ASME B16.5, ASME 16.47
Test and verify: API 598

Performance parameter

Nominal size: NPS 2"~40"
Nominal pressure: CLASS 150~600Lb
Applicable temperature: -29~425℃
Applicable medium: water, steam, oil, sea water, etc
Main material: WCB;CF8;CF8M;CF3;CF3M

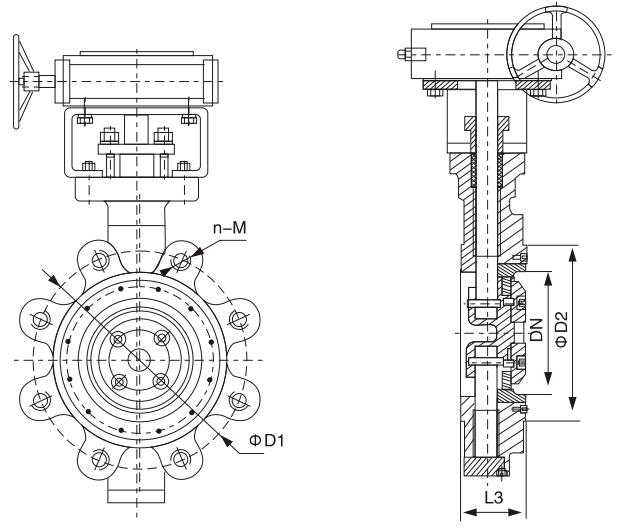

Product size

DN		150Lb
In	mm	L	L1	L2	L3	D	D1	D2	C	H	N-d
3	80	114	48	180	48	190	152.4	127	24.3	310	4-19
4	100	127	54	190	54	230	190.5	157	24.3	325	8-19
5	125	140	56	200	56	255	215.9	186	24.3	360	8-22
6	150	140	57	210	57	280	241.3	216	26.9	395	8-22
8	200	152	64	230	64	345	298.5	270	29	480	8-22
10	250	165	71	250	71	405	362.0	324	30.6	550	12-26
12	300	178	81	270	81	485	431.8	381	32.2	610	12-26
14	350	190	92	290	92	535	476.3	413	35.4	710	12-29
16	400	216	102	310	102	595	539.8	470	37	755	16-29
18	450	222	114	330	114	635	577.9	533	40.1	835	16-32
20	500	229	127	350	127	700	635.0	584	43.3	900	20-32
24	600	267	154	390	154	815	749.3	692	48.1	1060	20-35
28	700	292	165	430	165	925	863.6	800	71.9	1170	28-35
32	800	318	190	470	190	1060	977.9	914	81.4	1320	28-41
36	900	330	203	510	203	1170	1085.8	1022	90.9	1440	32-41
40	1000	410	216	550	216	1290	1200.2	1124	90.9	1640	36-41
48	1200	470	254	630	254	1510	1422.4	1359	108.4	1850	44-41
56	1400	530	390	710	390	1745	1651.0	1575	124.3	2040	48-48

DN		300Lb
In	mm	L	L1	L2	L3	D	D1	D2	C	H	N-d
3	80	180	48	180	48	210	168.3	127	29	310	8-22
4	100	190	54	190	54	255	200.0	157	32.2	325	8-22
5	125	200	56	200	56	280	235.0	186	35.4	360	8-22
6	150	210	59	210	59	320	269.9	216	37	430	12-22
8	200	230	73	230	73	380	330.2	270	41.7	535	12-26
10	250	250	83	250	83	445	387.4	324	48.1	695	16-29
12	300	270	92	270	92	520	450.8	381	51.3	805	16-32
14	350	290	117	290	117	585	514.4	413	54.4	880	20-32
16	400	310	133	310	133	650	571.5	470	57.6	930	20-35
18	450	330	149	330	149	710	628.6	533	60.8	990	24-35
20	500	350	159	350	159	775	685.8	584	64	1050	24-35
24	600	390	181	390	181	915	812.8	692	70.3	1230	24-41

DN		600Lb
In	mm	L	L1	L2	L3	D	D1	D2	C	H	N-d
6	150	210	78	210	78	355	292.1	216	54.7	425	12-29
8	200	230	102	230	102	420	349.2	270	62.6	640	12-32
10	250	250	117	250	117	510	431.8	324	70.5	745	16-35
12	300	270	140	270	140	560	489	381	73.7	820	20-35
14	350	290	155	290	155	605	527	413	76.9	935	20-38
16	400	310	178	310	178	685	603.2	470	83.2	975	20-41
18	450	330	200	330	200	745	654	533	89.6	1110	20-45
20	500	350	216	350	216	815	723.9	584	95.9	1215	24-45
24	600	390	232	390	232	940	838.2	692	108.6	1300	24-51

DN		900Lb
In	mm	L	L1	L2	L3	D	D1	D2	C	H	N-d
6	150	225	104	225	104	380	317.5	216	62.6	525	12-32
8	200	275	112	275	112	470	393.7	270	70.5	660	12-38
10	250	325	135	325	135	545	469.9	324	76.9	735	16-39
12	300	375	170	375	170	610	533.4	381	86.4	820	20-39
14	350	425	173	425	173	640	558.8	413	92.8	870	20-41
16	400	475	210	475	210	705	616	470	95.9	965	20-45
18	450	500	228	500	228	785	685.8	533	108.6	1050	20-51
20	500	575	250	575	250	855	749.3	584	115	1175	20-54
24	600	675	275	675	275	1040	901.7	692	146.7	1330	20-67

DN		1500Lb
In	mm	L	L1	L2	L3	D	D1	D2	C	H	N-d
6	150	350	160	350	160	395	317.5	216	89.6	550	12-38
8	200	400	180	400	180	485	393.7	270	99.1	690	12-45
10	250	450	200	450	200	585	482.6	324	115	780	12-50
12	300	500	230	500	230	675	571.5	381	130.9	905	16-54
14	350	550	250	550	250	750	635	413	140.4	990	16-60
16	400	600	265	600	265	825	704.8	470	153.1	1085	16-67
18	450	650	300	650	300	915	774.7	533	169	1180	16-73
20	500	700	340	700	340	985	831.8	584	184.8	1290	16-80
24	600	800	400	800	400	1170	990.6	692	210.2	1450	16-92
